Bells Creek - Water quality improvements

Bells Creek is an important multi-use drainage corridor conveying primarily urban runoff from parts of Clontarf, Margate and Woody Point.  The creek represents a highly modified waterway stretching from Maine Road/Magnolia Street at the upstream end to the discharge point at Bramble Bay approximately two kilometres to the south.

Water quality improvement projects have been identified across the region in Councils Total Water Cycle Management Plan (TWCMP) as suitable locations to upgrade and include vegetated stormwater quality improvement infrastructure. Such upgrades will meet Councils environmental objectives.

In 2018 MBRC undertook an investigation to identify suitable sites within the catchment of Bells Creek to provide Water Quality Improvements for Bells Creek, Bramble Bay and ultimately Moreton Bay.

The investigation used a Multi Criteria Analysis (MCA) decision tool to rank a range of retrofit options identified for the catchment. The MCA considered economic, environmental and social values as well as site suitability for each of the selected retrofit options.

Location

K.R Benson Park, 70 Maine Road, Clontarf 4019  View map

Google Map

Site 1 is located on the portion of Bells Creek that extends between Maine and Duffield Road in MJ Brown Park. It was nominated as a preferred site for the retrofit site for water quality improvement works.  It was proposed that water quality treatment infrastructure including a weir, sedimentation pond and bioretention basin replace a portion of the existing concrete lined channel, approximately 120 metres in length.

It is intended that the establishment of riparian vegetation is integrated with the works and will not only play a key role in facilitating water quality treatment but will increase landscape amenity within this section of the reserve. Furthermore, the proposed native vegetation treatments will also prevent erosion to the creek and basin edges and provide fauna habitat.

This project was completed in 2019 and has since established and is proving to be a great benefit to the local catchment.

Location of works

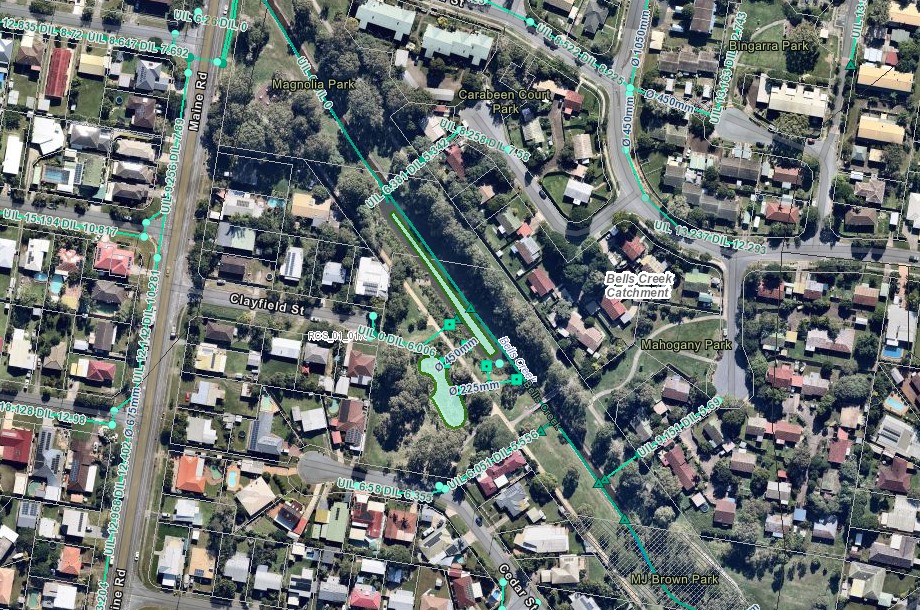

Map showing location of works for stage one



Gallery of completed works

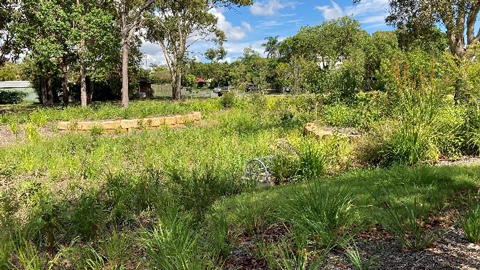

open landscaped parklands

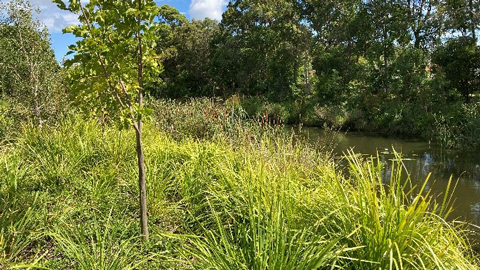

River bank with grass and tree

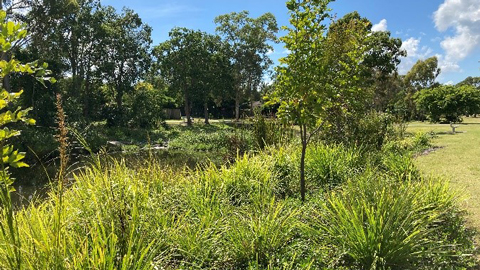

Long grass with trees and edge of riverbank

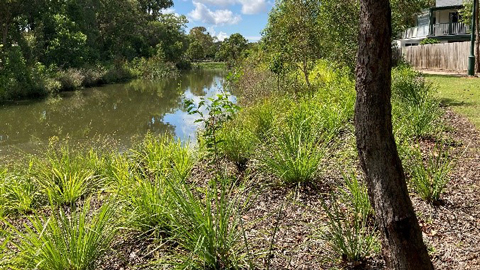

landscaped river edge with tree

Site 5 is located on the portion of Bells Creek that extends between King Street and Bell Street. It has been nominated as a preferred site for the retrofit project for water quality improvement works.

It is proposed that water quality treatment infrastructure including a weir, sedimentation pond to replace a portion of the existing concrete lined channel, approximately 110 metres in length.

It is intended that the establishment of riparian vegetation is integrated with the works and will not only play a key role in facilitating water quality treatment but will increase landscape amenity, prevent erosion to the creek and basin edges and expand habitat corridor linkage within this section of the creek.

The project proposes to replace the existing concrete drain with a naturalised sediment basin. The basin will consist of a concrete weir to retain freshwater upstream and prevent saltwater intrusion into the vegetated system and will incorporate rock scour protection and maintenance access surrounded by a broader vegetated floodplain. The naturalised basin will create a more self-sustainable system, with improved vegetated edges. Plants within the basin will help capture sediment and nutrients contained within stormwater and provide amenity and habitat value for the area.

The stormwater quality improvement works include:

  • replace concrete drain with a naturalised sediment basin;
  • provide stormwater treatment function;
  • improve the aquatic and terrestrial ecological values of the waterway & park;
  • meet the stormwater pollutant load reduction targets

The expected project outcomes include:

  • improved water quality and biodiversity
  • improved pedestrian connectivity
  • Landscaped parklands with improved visual amenity
  • Low maintenance self-sustaining green infrastructure
  • Improved water quality in Bells Creek

Location of works

Map showing location of works for stage two

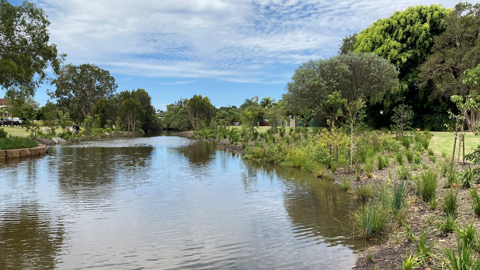

Gallery of completed works

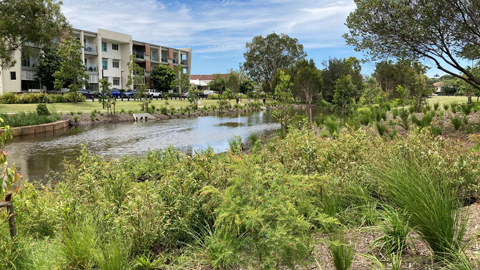

open landscaped parklands

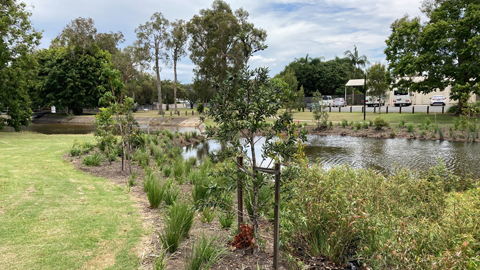

River bank with grass and tree

Long grass with trees and edge of riverbank

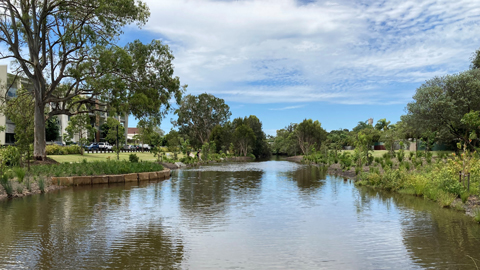

landscaped river edge with tree
